SS ROTARY GEAR PUMP (HRSS)
Our Range Of Products Includes Stainless Steel Gear Pump, Ss 316 Gear Pumps, Stainless Steel Dairy Pump, and Ss Rotary Gear Pump.
Harivallabh Roto Industries Is One Of The Leading Quality manufacturers and suppliers of Stainless Steel Gear Pump, Ss 316 Gear Pump, And Ss Rotary Gear Pump In India. It Is Widely Used For the Transfer Of Corrosive Chemicals & Viscous Liquids Also Used In Pharmaceutical And Chemical Industries.

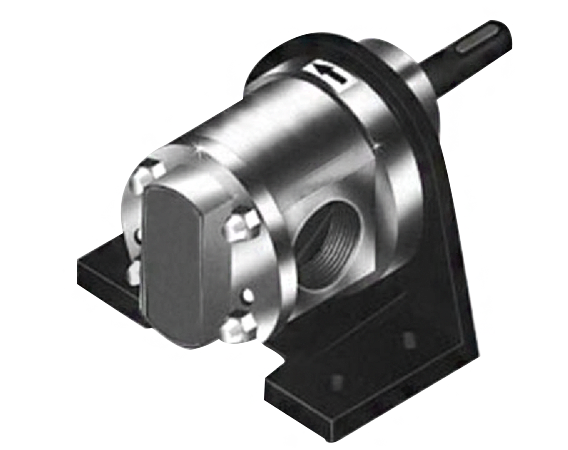

Harivallabh Roto Industries Offers Gear Pump Model “Hrgs” (Ss Rotary Gear Pump, Stainless Steel Gear Pump) Which Is a Type Positive Displacement Rotary Gear Pump. Model “HRSS” Having All Stainless Steel (Ss-316) In Three Piece Construction With Investment Cast. Due To Three Piece Construction, It Can Be Easily Cleanable And Maintainable That Is Why It Is Highly Used In All Kind Of Food Industries. These Pumps Have Ss-316 Gear And Shaft. The Shaft Is Supported By Self Lubricating Type Teflon Coated Du Bushes And a Specially Designed Wear-plate Which Are Available In Gunmetal And Teflon And help the Gear Rotate Freely Without Jamming the pump, The Sealing Is Done With Gfo” Pack Sealant And Viton Oil Seal. The Right Angle Mounting Brackets Facilitates Foot Mounting Of The Pump On the Base Plate With Electric Motor Of Appropriate Ratings. These Pumps Have Sturdy Design And Construction For Long Trouble Free Service.
Application Of Ss Gear Pump And Availability Of Size
| MODEL | SUCTION & DELIVERY SIZE |
CAPACITY AT 1400 RPM | ||
|---|---|---|---|---|
| LPM | US GPM | M3/HR | ||
| HRGS-025 | 1/4″ X 1/4″ | 8 | 2.1 | 0.5 |
| HRGS-040 | 3/8″ X 3/8″ | 15 | 3.9 | 0.9 |
| HRGS-050 | 1/2″ X 1/2″ | 25 | 6.6 | 1.6 |
| HRGS-075 | 3/4″ X 3/4″ | 30 | 7.9 | 1.8 |
| HRGS-100 | 1″ X 1″ | 50 | 13.2 | 3.0 |
| HRGS-125 | 1 1/4″ X 1 1/4″ | 83 | 21.9 | 4.98 |
| HRGS-200 | 2″ X 2″ | 200 | 52.8 | 12.0 |
HRGS Material of Construction
| PUMP BODY | CF8M[SS-316] |
|---|---|
| FRONT COVER | CF8M[SS-316] |
| BACK COVER | CF8M[SS-316] |
| GLAND COVER | SS-3 16 |
| PACKING | TEFLON SHEET |
| SEALING | “GFO”PACK TEFLON/MACH.SEAL/VITION OIL SEAL |
| BUSH BEARING | BRONZE/TEFLON WEAR PLATE |
| MOUNTING BRACKET | C.L.GR-20 IS 2 10 |
| HEX NUT AND LN KEY NUT | AISI[SS-316] |
| ROTOR/STATOR SHAFT | AISI[SS-316] |
| R.H & L.H GEAR | AISI[SS-316] |
| KEY FOR COUPLING | SS-304 |
Feature And Application For Ss Gear pump
• Construction Is In Three Pieces So it is Easily Cleanable And Maintainable.
• Gun Metal Wear Plate, Du Bush, Teflon Wearplate For Smooth Running And Dry Bearing Condition.
• Self Priming Pump
• Single Helical Gear Design.
Bi-direction Positive Displacement Pump.
• Corrosion Prevent Pump
Ss Rotary Gear Pump Application
• Food Product Like Ghee, Butter, Pulp, Vegetable Sauce.
• Pharmaceutical Industries.
• Cosmetic Industries.
• Dyes And Resins.
• Chemical Industries For Corrosive Viscose Chemical.
• Dyeing And Printing House.
Special Chemical And Acid Industries.
